Can 240 volts be single-phase?

Can 240 volts be single-phase?

The voltage between the two legs (called phase to phase or line to line) is 240V and the phase to neutral voltage is 120V. The 120/240 notation identifies the phase to neutral voltage followed by the phase to phase voltage. Some list the phase to phase voltage first so it may also be called 240/120 single phase.

What split phase 240?

Split-phase Power System. Instead of a single 240-volt power supply, we use two 120 volt supplies (in phase with each other!) in series to produce 240 volts, then run a third wire to the connection point between the loads to handle the eventuality of one load opening. This is called a split-phase power system.

What is 240V single-phase wiring?

For 240V circuits, the potential difference is between two hot wires that are 180° out of phase (see Figure 1). Because we only measure across two wires, both 120V and 240V are referred to as single-phase power. Under normal operation, the ground wire never carries current.

How many wires can be in a single-phase circuit?

two
Single-phase power is a two-wire alternating current (ac) power circuit. Typically, there is one power wire—the phase wire—and one neutral wire, with current flowing between the power wire (through the load) and the neutral wire.

What is the difference between 230 and 240 volt?

Wiring an outlet for 230 volts is identical to wiring an outlet for 220 or 240 volts. When electricity is wired into a home, the power company delivers electricity at 120 and 240 volts with a plus or minus of 5 percent. Therefore 220, 230 and 240 volts are all interchangeable and wired the same.

Does 240 have a neutral?

In answer to your specific question, there is typically no neutral in a 240V-only circuit – all you have is the two ungrounded/hot legs (in your case, red and white conductors) and an equipment ground (either bare or insulated). Under normal conditions in a 240V circuit, the load current only flows on the two hot legs.

Why does single-phase have 2 wires?

This difference in current between the two lines occurs because we have “Split” the 240-volt single phase current between two 120-Volt lines and used different amounts of power from each one. That is why a home’s electrical service is properly called a split-phase or single-phase, but never a two-phase service.

Can I wire a 3 phase motor to single-phase?

Running a three phase motor on single phase power is simple. Essentially all you need to do is wire the single phase power to the input side of your variable frequency drive and then wire the three phase power of your motor to the output section of the drive. That’s it!

What kind of power is 240V single phase?

240V 3 Phase and 240V Single Phase. 240V power is used in the US and parts of the world. In the US 120 / 240V 1 Phase 3 Wire is the standard for homes and 240V 3 Phase Open Delta is the standard for small buildings with large loads.

What’s the difference between 240V and 240V 3?

In the US, 240V Power is provided to small buildings with large loads as 240V 3 Phase Open Delta. It’s like 120 / 240V but also provides 240V 3 Phase for large loads (Machinery, etc.).

What does 240V 3 phase open delta mean?

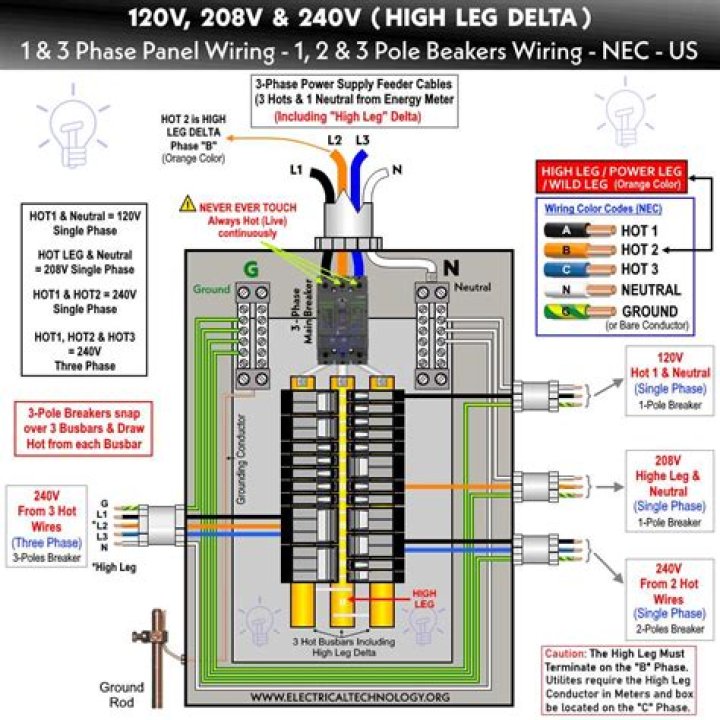

240V 3 Phase Open Delta (3P4W) In the US, 240V Power is provided to small buildings with large loads as 240V 3 Phase Open Delta. It’s like 120 / 240V but also provides 240V 3 Phase for large loads (Machinery, etc.). It’s often called “Wild Leg” of “High Leg” Delta because one leg (Phase B) is different.

Can a VFD convert single phase power to three phase power?

Many manufacturers have lines of VFDs built to input single-phase power and output three-phase power. For example, the Galt G200 series and Mitsubishi D700 & E700 series all have VFDs that come from the factory ready to operate on single-phase input power and create three-phase output power to run an induction motor.

Why is 240V called ” single phase “?

It’s just two separate winding wraps in OPPOSITE directions on the secondary. Stupid simple, but I just never knew it. So, unlike a three-phase service that uses all three power phases from the power supply, the single-phase service only uses one.

What’s the difference between single phase and three phase electrical wiring?

The single-phase wire has the two hot wires surrounded by black and red insulation, the neutral is always white and there is a green grounding wire. Three-phase power is supplied by four wires. Three hot wires carrying 120 volts of electricity and one neutral. Two hot wires and the neutral run to a piece of machinery requiring 240 volts of power.

Many manufacturers have lines of VFDs built to input single-phase power and output three-phase power. For example, the Galt G200 series and Mitsubishi D700 & E700 series all have VFDs that come from the factory ready to operate on single-phase input power and create three-phase output power to run an induction motor.

How many amps does a 240V 3 phase wire have?

415Y / 240V 3 Phase 4 Wire (3P4W) 1 Current (Amps): 200A 2 Voltage Volts): 240V 3 Maximum 1 Phase Power per Phase = 200 x 240 48,000 Volt Amps (VA) per Phase or 48 Kilowatts (KW) per Phase. 4 Maximum 3 Phase Power = 200 x 415 x 1.732 144 KVA Kilovolt Amps or 144 KW Kilowatts
