Can a DSc 832 work with a fire alarm?

Using one of the two PGM Outputs allows the DSC 832 to work with 4-wire smoke detectors. The PGM out provides switched power for resetting the 4-wire smokes, while one of the standard zone inputs is programmed for the fire alarm function.

How often should I Change my DSC power 832 battery?

The DSC Power 832 security system has given us flawless service for over 15 years. The only work I’ve done on it is a routine battery change every couple of years or so. If you’re planning a new DIY alarm system, or are having one professionally installed, you may want to consider the DSC Power 1832.

Can a DSc alarm system run off of battery power?

Hunker may earn compensation through affiliate links in this story. A DSC alarm system should run off of battery power for several hours during a power outage, but if you have a longer period of downtime, the batteries can be drained. When that happens, you will need to reset the sensors using the keypad on the control unit.

How to turn off trouble light on DCs power 832?

If you will not be using the communicator functions, you have to turn them off by entering programming, turning off option 7 in section 015, and option 1 in section 380. Thanks for that. Just completed those steps but trouble light is still on.

Do you know the master code for DSC power 832?

We have recently purchased a house that came with the DSC Power 832 Security System. Previous owners did not use the security system and did not know the master code. I have the owners manual but cannot figure out how to reset the master code.

How to disarm DSC power 832 Zone 1 light?

Re-connect AC power. (Battery power will NOT default the panel.) Go to a keypad, and verify that the Zone 1 light is lit. Remove AC power, and reconnect the original wiring. Reconnect AC and battery power. The default master code is 1234, and can now be used to arm and disarm the DSC Power 832 system.

Can a DSc 832 work with a 2 wire smoke detector?

The fire zone is optimized for 2-wire smoke detectors using the PGM2 terminal. The connections are compatible with several different 2-wire smoke alarm models, and provide both switched power and alarm functions on the same two terminals. Using one of the two PGM Outputs allows the DSC 832 to work with 4-wire smoke detectors.

Where is the DSC power832 control panel located?

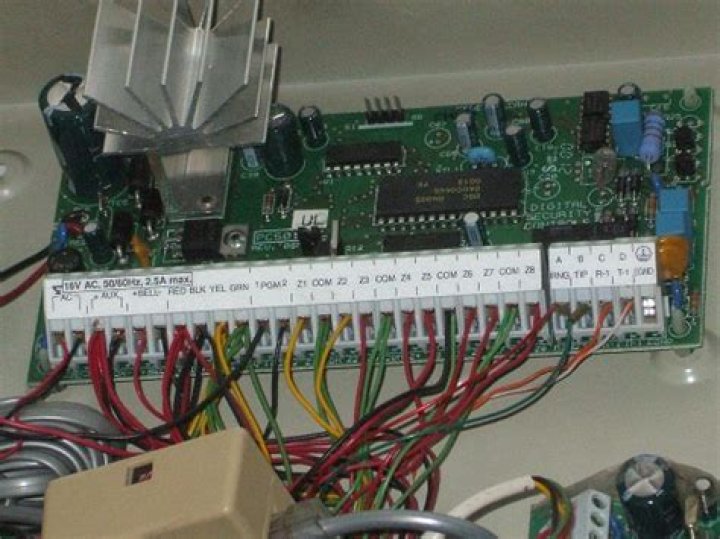

General System Operation Your security system is made up of a DSC Power832 control panel, one or more Power832 keypads and various sensors and detectors. The control panel will be mounted out of the way in a utility closet or in a basement. The metal cabinet contains the system electronics, fuses and stand-by battery.

How many zones does the DSC 832 panel have?

The basic DSC 832 panel has 8 on-board zones for burglary devices, plus a dedicated fire zone via the PGM terminals. The burglary zones are individually programmable for many different responses, so zones can be customized to match many applications.

How many burglar zones can I add to my DSC power 5010?

Burglar zones can be added using up to (3) 5108 zone expander modules, each of which adds 8 zones to the basic system. This gives the PC 5010 a maximum capacity of 32 burglary zones, hardwired or wireless. The fire zone is optimized for 2-wire smoke detectors using the PGM2 terminal.
