Can you splice security camera wires?

Can you splice security camera wires?

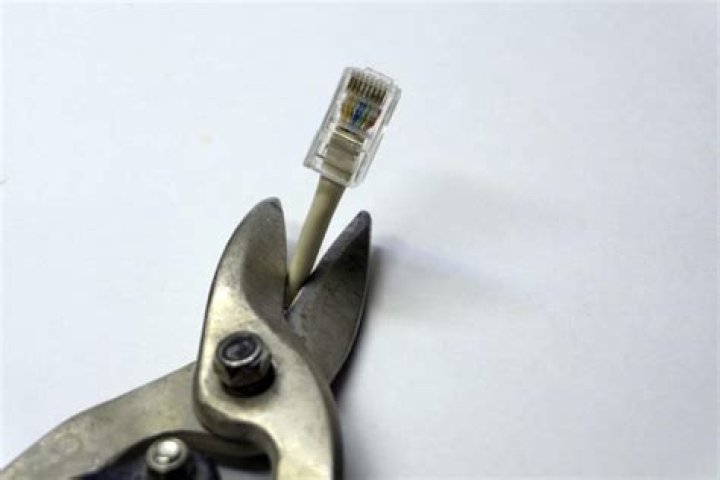

Can security camera wire be spliced? Simply the answer is YES, the security camera wire be spliced whatever its power or data cable. The Power cable is spliced by matching the two old wires with the new power wire, each one done separately.

How do you fix a surveillance camera?

How do you troubleshoot a security camera?

1. Know your login details.
2. Check the power source (most cameras are PoE)
3. Check to see if cameras work from inside or outside the network.
4. Check the cabling.
5. Reboot the system.
6. Check for IP conflict.
7. Check ARP tables.
8. Update software & firmware.

What cable is used for IP cameras?

If you’re setting up an IP security camera system, you will most likely use cat5e Ethernet cables to send both power and data to your IP security cameras. You may also need a 12v power supply if sending power over your Ethernet cable is not an option.

How many wires does a IP camera need?

Ethernet Plug and Cable Wiring. When wiring up an IP camera, or any other IP device for that matter, you must use a CAT 5 data cable containing 4 pairs of wires. Each pair consists of a solid coloured wire and a strip of the same colour on a white background.

How do I connect to an IP camera?

Plug an Ethernet cable (a.k.a. Cat 5 cable) into the Ethernet socket of the network camera, then plug the other end to the router (a.k.a. gateway or access point). If this network camera does not have Wi-Fi, this may be the only step needed for the network configuration. Find the IP address of the network camera.

Which cable is best for CCTV camera?

For CCTV frequency, RG59 and RG6 coaxial cables are recommended from Finolex Wires and Cables for optimum performance, non-distorted and noise-free video transmission.

Where is the RJ45 pin out on a Hikvision IP camera?

The RJ45 pinout for the “Pro Series” Hikvision IP cameras. On the left side is the Hikvision camera’s pigtail, on the right side is the RJ45 connector. You have to match the colors as shown above. Once you terminate the connector, use an Ethernet coupler to bring the camera to the network.

Do you need to replace the pigtail on a security camera?

In most cases this can be repaired by replacing the pigtail itself. The pinout on the pigtail’s RJ45 connector does not follow TIA/EIA-568A or B standards. Therefore, a complete pigtail replacement is necessary.

How to disassemble an outdoor IP security camera?

To get started on disassembling the camera, begin with the screws on the bracket, and work your way around. Remove the sun shield if there is one. You should have a disassembled mounting bracket at this point. Keep the lens covered still, and remove the locking nut using the specialized screwdriver. Then remove the lens cover.

Are there surge protectors for IP security cameras?

This way your IP camera system is protected from surges. Note that the $15 surge protectors you can buy in just about any department store generally have a protection rating of only 500 joules and don’t offer ports for RJ45, etc. This opens in a new window.
