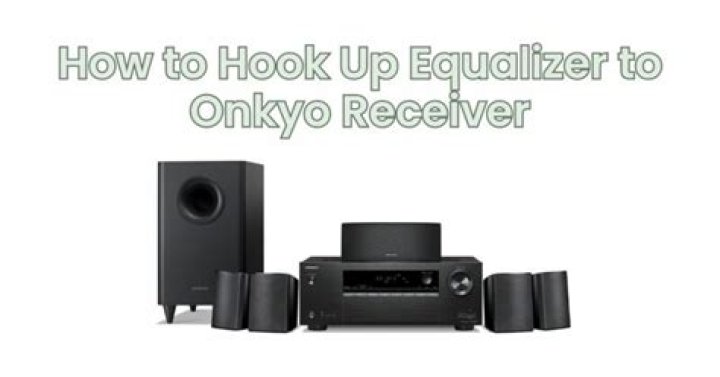

How do I connect my equalizer to my Onkyo receiver?

How do I connect my equalizer to my Onkyo receiver?

Connect one pair of RCA cables between the receiver and equalizer. Connect one pair of cables to the pre-amp output channels on the receiver and the other end of the cable to the left and right channel inputs on the equalizer. You will usually find these channels on the rear of the equalizer.

How do I connect my graphic equalizer?

Plug a pair of RCA audio cables into the input sockets on the rear of the graphic equalizer. Connect the other end to the “Tape Monitor” outputs on the rear of the receiver. Connect a second pair of audio cables to the “Tape Monitor” inputs on the rear panel of the receiver.

How do I connect an equalizer to an integrated amplifier?

Here are the steps you need to follow:

1. Connect Equalizer To Receiver. The first step is pretty simple.
2. Connect RCA Cables To Equalizer Input. For this part, turn to the rear part of your equalizer where all the required channels are set.
3. Connect Receiver To Amplifiers.
4. Check The Equalizer.

How do you use an equalizer?

1. Tip 1 – Have an intention.
2. Tip 2 – Don’t rely on EQ alone, especially to shape the tone.
3. Tip 3 – Prioritize cuts, but still use boosts.
4. Tip 4 – Avoid applying EQ in solo.
5. Tip 5 – Small changes soon add up.
6. Tip 6 – Be more subtle with stock parametric EQs.
7. Tip 7 – Don’t obsess over plugin order.

What is the best equalizer setting?

The “Perfect” EQ Settings: Unmasking the EQ

• 32 Hz: This is the lowest frequency selection on the EQ.
• 64 Hz: This second bass frequency starts to become audible on decent speakers or subwoofers.
• 125 Hz: Many small speakers, such as in your laptop, can just about handle this frequency for bass information.

What should my equalizer be set at?

At most, you want a 3-dB difference between each, with the 32hz frequencies on the higher end of a curve, a mostly-level 120 to 4,000hz, and a gentle dip down between 8,000 and 16,000hz. Check the corresponding frequencies on your EQ and make some adjustments.

What is the best graphic equalizer?

1. Behringer MiniFBQ FBQ800 9-Band Graphic Equalizer.
2. dbx 131s Single Channel 31-Band Equalizer.
3. Rockville REQ231 Dual 31 Band 1/3 Octave Graphic Equalizer.

What equalizer setting is best for car sound?

How do you connect an equalizer to a receiver?

The length of the RCA cables should match the length of the distance between the receiver and the equalizer. Connect one pair of RCA cables between the receiver and equalizer. Connect one pair of cables to the pre-amp output channels on the receiver and the other end of the cable to the left and right channel inputs on the equalizer.

How do I Turn on the tape monitor on my equalizer?

To switch on the “Tape Monitor” setting you should depress the button on the front panel of the equalizer. If you have a tape deck connected to the tape monitor channels then you will have to remove this before connecting your equalizer.

Where is the best place to mount an equalizer?

Most people prefer to mount their remote-mount equalizer in their trunk near the amp. This way they can easily add additional amps later on by connecting a close wire. Other possible locations include under a seat in the vehicle.

Where is the yellow wire on an equalizer?

The yellow wire (could be red or another color- check your manual) on your equalizer is the 12V power cable. Connect this cable either to the power cable attached to the receiver or to a 12V variable power source in the fuse box (such as the wiper fuse).

How do you connect an equalizer to a stereo?

Connect the equalizer directly to your amplifier if your receiver does not have preamp-output channels or tape monitor channels but your amplifier has preamp-in and out channels. Most receivers have either preamp-in and preamp-out connections or tape monitor connections. In most cases, these are the best way to connect an equalizer to your stereo.
