How do I connect my NVR to my network?

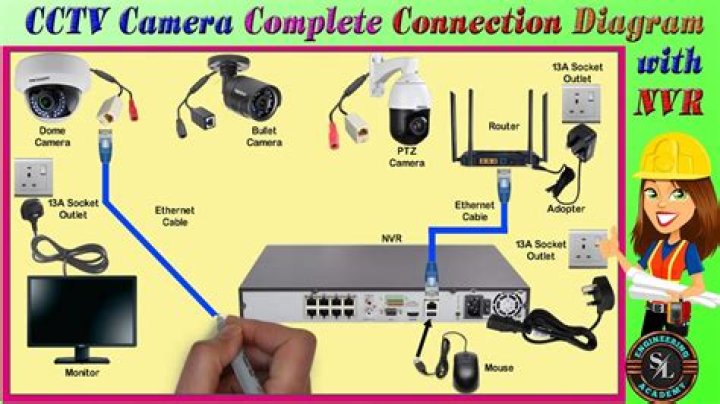

Here is how you can proceed with the hardware setup:

Take the Ethernet cable from the router and connect it at the back of NVR. Ensure that NVR is connected to the Internet.
Use Ethernet cables to connect the IP cameras to PoE NVR.
Take an HDMI cable or a VGA cable to connect NVR and TV or monitor.

Will any PoE camera work with any NVR?

Actually, if you get a complete PoE IP camera system set, which means both PoE security cameras and NVR are from one manufacturer, then you can simply connect all cameras with the NVR directly via the 4, 8 or even 16 PoE ports on it.

How do I connect my wireless IP camera to PoE NVR?

Step 1: Connect the camera to your router via WiFi by configuring WiFi settings for the WiFi camera. Step 2: Connect your PoE NVR to the LAN port of the router. Step 3: Open the monitor of your NVR, then select Channel Settings > IP channel. Check Auto Add and click Scan.

How do I connect my NVR to my wireless router?

Step by Step Instructions

Connect the NVR and IP Camera directly to your router or modem with a CAT5 cable.
Open the ConfigTool and locate your NVR and IP Camera.
Login to both using Internet Explorer.
On the NVR, go to Settings->Network->WiFi Device Manage.
On the IP Camera, go to Setup->Network->WiFi.

Can I connect PoE switch directly to NVR?

You can plug the PoE switch to PoE NVR, then plug the NVR LAN port to the router. (The NVR LAN port is a Gigabit Ethernet port, the other ports are 100Mbps Ethernet ports). And in this kind of connection, all the cameras will obtain IP address from the NVR, and can’t be connected as separate devices.

How do I connect my IP camera without a PoE switch?

Option One: Connecting PoE NVR for IP Cameras Without PoE Switch

Use an Ethernet cable to connect the router and PoE NVR. Make sure the NVR can access the Internet.
Connect IP cameras to the PoE NVR directly by Ethernet cables.
Connect the NVR and a monitor or TV via a VGA or HDMI cable.

Can I make my NVR wireless?

If a CCTV DVR or NVR don’t have a built-in WiFi support, then you have to run internet cable (CAT 5 or CAT 6 Ethernet cable) to connect your DVR or NVR to the internet via the router. Of course, by using another WiFi router/access point as a wireless bridge, you could connect a CCTV DVR to your router wirelessly.

How do I set up a Speco DVR?

So click your menu button. Click the “Add” area on the left lower section. You will see the screen where you can type in the information you set up on the Speco DVR such as open ports and user name and password and either I.P address or DDNS.

How can I view my Speco camera recorder?

You can view the recorders with the internet explorer web browser. You can also see the recorder with SecureGuard VMS and CMS software. With the VT and NS series, you can also view the recorder with Speco Tech Multi-Client software. How to log into IP cameras?

What are the ports forwarded in a Speco router?

The ports that need to be forwarded in the router depends on the recorder model. Speco Player app uses the Network video port and web port forwarded. (default network video port is 5445 and default webport 80) Speco Blue you would need the HTTP port forwarded (default webport is 80) Speco Gray P2P or Port 9000. Speco One Port 37777.

Do you need port 9000 for Speco access?

Yes, the Speco Access mobile app needs to have port 9000 forwarded in the router for you to access the doors remotely. How to do email setup for the HU,NU,VT,VX,HT,HS?
