How do I connect speaker wires to my amp?

Connect the RCA, speaker, and remote turn-on leads to your amp. Feed the RCA cable along the bottom of the doors, then plug it into the back of the amp. Once you’ve done this, plug the speaker and remote turn-on leads into the back of the amp. These wires may be different colors, depending on the manufacturer.

Which is positive and negative on speaker wire?

typically, the positive wire is red and the ground, or negative, is black. However, most speaker wires don’t do colors. Ultimately, what you want is for the wire that connects to the red terminal on your Amp or Receiver to connect to the red terminal on your speaker.

Why did my speaker wire catch on fire?

Speaker wire can catch fire if a component shorts out. Although protection circuits will shut off the ampere if there is a short. The wire is inherently low voltage; therefore, this is a low-level threat.

Is exposed speaker wire dangerous?

With electricity being confined within the speaker wires at all times, there is little risk of electrocution. With that being said, due to the low current that passes through speaker wires, even when the naked speaker wires come in contact with the human body, it will not pose any harm.

Is it OK to run speaker wire next to electrical wire?

According to NEC 300.3(C)(1), you can only run the speaker cable in the same enclosure as a higher-voltage circuit if the insulation of the speaker cable is rated for the voltage of the higher-voltage circuit.

What color wires are for speakers?

The color code for four-conductor wire is speaker one: Red (positive), Black (negative) speaker two: White (positive), Green (negative). Its purpose is to carry an electrical signal (voltage and current) from the amplifier (or the amplifier section of a receiver) to the speakers.

What can I use to connect my speakers to my amp?

You can cover the wire with wax or sand down the area to get good contact. However, you can also use a splice connector to connect the remote wire. Moreover, it is the best way to use a switch to control the power of the amplifier. Otherwise, it’ll drain your battery. Now, complete the wiring of the speakers.

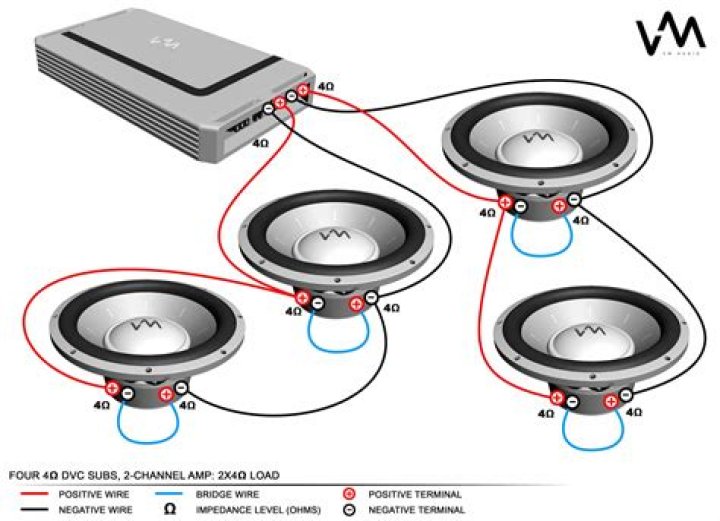

How to wire car speakers to AMP diagrams?

So, connect the amplifier output jack to each of the speakers and play music. Here, the speaker wires should be 16-gauge as well as 14-gauge or 12-gauge will be perfect for the subwoofers. Now, connect the negative end of the wires to the speakers as positive to the battery terminals. The sound quality depends on the proper connection.

Is it safe to pair a speaker with an amplifier?

Almost all of the time, that’ll ensure a safe speaker and amplifier pairing, and it takes out most of the complicated maths. As an aside, you’ll find that many modern speakers and amplifiers have also moved towards ‘compatible with’ ohm ratings, which greatly simplifies things for everyone.

What kind of wire do I need to wire up my speakers?

A bi-amping wire involves four wires on the amp end and four on the speaker end, each their own insulated conductors. Many loudspeakers will only require a single pair of standard speaker cables.

Where do the speakers go to connect to the AMP?

The wires would run from one black connector to the other (the right side of the photo below). But since we’re using an external amplifier for the speakers, the speaker wires from the car get diverted to the amp — that’s the bundle of wires on the bottom plug heading left to the amplifier.

What kind of wire do I need to run speakers?

When running new speaker wires from your amplifier’s output to the speakers, any size wire from 18- to 14-gauge will work fine. (The lower the gauge number, the thicker the wire.) For subwoofers, use 16- to 12-gauge wires.

What kind of wire do you use for an amplifier?

The best way to do that is to run a new speaker wire from each amplifier output to each speaker. Use 14- or 16-gauge wire for speakers, 12- or 14-gauge for subwoofers. Speaker-level signals are not very prone to picking up interference, so it’s okay to run your speaker wires near power cables. Running wires is all about finding the best path.

Do you run the speaker wires from the dash to the AMP?

This means, you just need to run the eight speaker wires from the dash to the amplifier, just like you do the RCA cables. In fact, when you’re installing the amp, it’s smart to run the RCA cables and new speaker wires at the same time.
