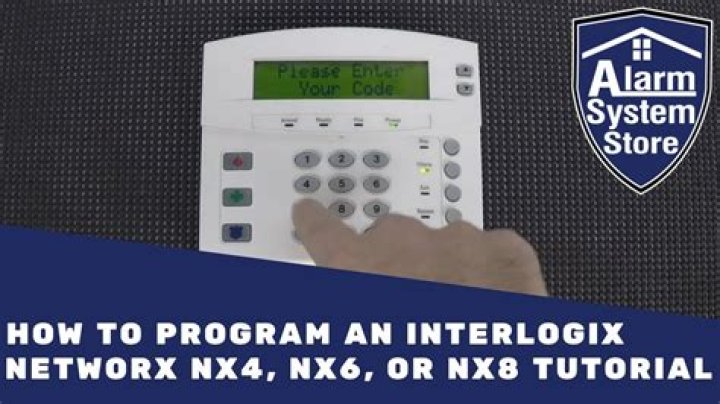

How do I program the nx-8 control panel?

How do I program the nx-8 control panel?

NX-8 Control 11. PROGRAMMING THE NX-8 CONTROL PANEL. ENTERING THE PROGRAM MODE: To enter the Program Mode, press [˜]-[ 8]. At this time, the five function LEDs (Stay, Chime, Exit, Bypass, & Cancel) will begin to flash.

What are the locations of Networx NX4 and nx6?

NetworX NX4 will only have Location 25. NetworX NX6 will have locations 25-28. NetworX NX8 & NX8E will have locations 25-36. Each location will correspond to a set of 8 zones. For instance Location 25 is zone definition programming for zones 1-8.

Which is the factory default for the nx-8?

The factory default for User #1 is [1]-[2]-[3]-[4] when using a 4-digit code, or [1]-[2]-[3]-[4]-[5]-[6] for a 6-digit code. This code can then be used to enter the new arm/disarm codes. (See location 41, page 24) Automatic Arming- If programmed, the NX-8 will Auto Arm at a specif ied time.

How does automatic arming work on the nx-8?

Automatic Arming- If programmed, the NX-8 will Auto Arm at a specif ied time. At this time, the keypad will beep for 50 seconds before the panel arms. The ar ming process will be stopped if a code is entered on th e keypad.

What is the installation manual for the nx-8e?

This is the NX-8E Control Panel Installation Manual. This document includes an overview of the product and detailed instructions explaining how to install the NX- 8E board inside the enclosure and how to program the control panel.

Is the Networx nx-8 control panel user friendly?

The NetworX NX-8 represents a new approach to security systems design. Drawing on our experience in the world market as the largest exporter of USA manufactured controls, we have developed the most flexible, durable, and user- friendly control ever seen in our industry.

What does the chime feature on nx8 do?

Chime Feature:An option that allows the keypad to sound a ding-dong whenever an entry/exit door is opened. Codes:Can be either User Codes (relating to a person) or Function Codes (a toggle switch to turn specific functions on/off). NOTE: A system may have either 99 four (4) digit codes or 66 six (6) digit codes, but not a mixture of the two.

How to install J12 and J13 control panels?

Install J12 for AUX1 and J13 for AUX2. COM Common used to ground any devices connected to relays RELAY1 NC = Normally closed dry contract rated 1 amp at 30 volts. C = Closed dry contact rated 1 amp at 30 volts.
