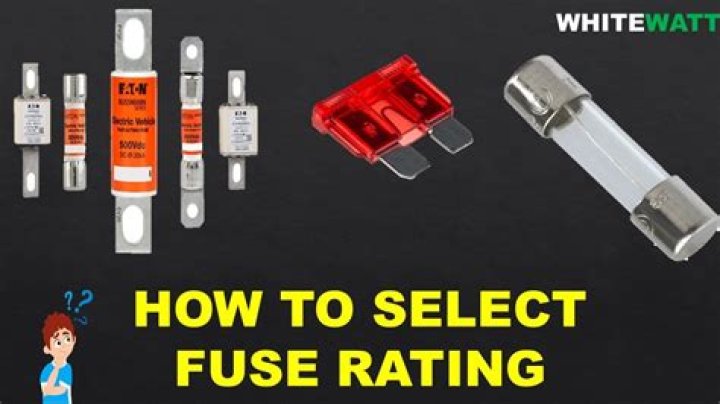

How do you choose a fuse rating?

In order to select the right amperage of the fuse, you first need to know the full-load steady-state current of the circuit at an ambient temperature of 25º C (68º F). Once the current value is determined, then a fuse rating should be selected as to be 135% of this value (taken to the next standard value).

What size fuse do I need for my car amp?

The correct size of fuse to use depends on the amp you are wiring. If your amp has an internal fuse, then your inline car amp fuse should be a bit larger. For instance, if your amp has an internal 20 amp fuse, then you should go for a 25 or 30 amp inline fuse. Suppose you have two amps.

How do I know what size fuse I need?

The simple calculation is watts divided by volts equals amps. After you have calculated this, it is a simple case of adding around 10% to the value and choosing the nearest fuse to match. This is a more precise method then just guessing should you require a 3, 5, or even 13 amp fuse.

What is the fuse rating?

The maximum value of safe current allowed to flow through a fuse wire before it melts is called fuse rating. Fuse rating depends upon the thickness and length of fuse wire. A fuse of proper rating as per the appliance need should be used in circuit. A fuse of 5 A rating is used in power line meant for bulbs, fans, etc.

How many Watts can a 1 amp fuse handle?

3kWatts divided by 230 = 13.04amps. 3000 Watts is the maximum it is safe to put on a 13amp fuse in a plug.

How many watts can a 40 amp fuse handle?

9,600 watts
40-amp 240-volt circuit: 40 amps x 240 volts = 9,600 watts.

Can I put a 13amp fuse in a 3 amp?

No it won’t. The only difference would be the current that flowed under fault conditions. If the OP replaced the cable on his lamp to a size that could handle at least 13A under normal/fault conditions then he could leave that 13A fuse in place until rapture!

What’s the standard voltage for a midget fuse?

The standard voltage ratings used by fuse manufacturers for most small- dimension and midget fuses are 32, 63, 125, 250 and 600.

What should the interrupting rating of a fuse be?

Information on other fuse series can be obtained from the Littelfuse. Fuses listed in accordance with UL/CSA/ANCE 248 are required to have an interrupting rating of 10,000 amperes at 125V, with some exceptions (See STANDARDS section) which, in many applications, provides a safety factor far in excess of the short circuit currents available.

What are the selection factors for a fuse?

Of all the “Selection Factors” listed in the FUSE SELECTION GUIDE, special attention must be given to items 1, 3, and 6, namely, normal operating current, ambient temperature, and pulses. For example, one prevalent cause of nuisance opening in conventional power supplies is the failure to adequately consider the fuse’s nominal melting I2t rating.

What’s the difference between Class H and class are fuses?

They have identical outline dimensions with the Class H fuses but have a rejection feature which prevents the user from mounting a fuse of lesser capabilities (lower interrupting capacity) when used with special Class-R Clips. Class-R fuses will fit into either rejection or non-rejection clips. A fast acting or dual element time delay fuse.

The standard voltage ratings used by fuse manufacturers for most small- dimension and midget fuses are 32, 63, 125, 250 and 600.

Information on other fuse series can be obtained from the Littelfuse. Fuses listed in accordance with UL/CSA/ANCE 248 are required to have an interrupting rating of 10,000 amperes at 125V, with some exceptions (See STANDARDS section) which, in many applications, provides a safety factor far in excess of the short circuit currents available.

What happens if you use an incorrect fuse?

Furthermore, using an incorrect fuse can be extremely hazardous! When sizing the fuse, the most common calculation method is to multiply the continous load/feed current of a branch by 1.25, and using the closest rated fuse that is greater than your result. However, there are exceptions to this calculation method.

What can Class T fuses be used for?

Current Rating Class T fuses can be used in applications that require fastacting protection, such as equipment containing variable speed drives, rectifiers, and other surge-sensitive components. Main switches containing Class T fuses may be used to provide protection to individual electric services and meter stacks.
