How do you connect speaker wires together?

How do you connect speaker wires together?

Here’s how:

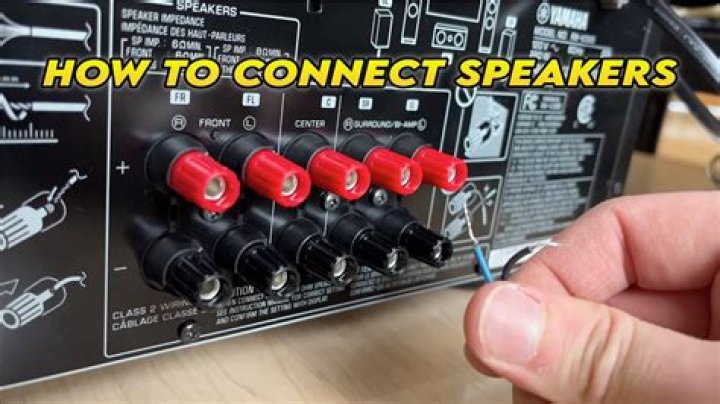

1. Loosen the binding post twist tops enough to expose the wire hole.
2. Strip the speaker wire to about 3/8″ to 1/2″ length bare wire. Twist the wire tightly by hand to keep the wire strands together.
3. Insert the wires one at a time up to (but not including) the insulation.

How do I connect two wired speakers?

Connect using a combination of the two connections. Connect two speakers using series mode and then use a split cable to connect a second set of speakers. Connect all of the speaker sets together and then connect the single end of your cable into the negative jack on your amplifier.

Where do you put the wire in a speaker?

Some speakers come with wire sticking out of a hole in the back of the cabinet. Others have a row of little sockets for you to connect wires to. It should match a row of sockets on the back of your amplifier which looks something like this: Insert the wires into the corresponding sockets.

What’s the best way to splice a speaker?

This is hands-down the most reliable way to extend & splice speaker as when done properly soldered wire is extremely strong and is permanent. To begin, follow the wire cutting & stripping steps from the first section (using crimp connectors). Cut & strip the speaker wire (at least 1/2″ length of bare wire is needed).

What kind of wire do I need for a surround sound system?

Tips Some prepackaged surround-sound systems use proprietary plug-in connections, which are included with the speaker purchase. Use only the default type of speaker wire. If you need to wire through your walls or ceiling, use UL-rated speaker wire that is labeled CL2 or CL3.

What’s the best way to crimp speaker wire?

How to crimp speaker wire properly: Strip the wire leaving 3/8″ to 1/2″ bare wire exposed. Tightly twist the wire so it can be pushed into the connector properly. Insert the wire into one end firmly, pushing it into the metal contact inside.

What’s the best way to connect a speaker wire?

Loosen the binding post twist tops enough to expose the wire hole. Strip the speaker wire to about 3/8″ to 1/2″ length bare wire. Twist the wire tightly by hand to keep the wire strands together. Insert the wires one at a time up to (but not including) the insulation. Twist the tops down and onto the wire firmly to hold it in place.

How to wire up series and parallel speakers?

SERIES & PARALLEL SPEAKER WIRING 1 BASICS OF WIRING SPEAKERS. There are several ways to wire up Speakers, the most common methods are Series and Parallel which are discussed here. 2 SERIES SPEAKER WIRING. 3 PARALLEL SPEAKER WIRING. 4 A COMBINATION OF SERIES & PARALLEL.

What kind of cable do you need for a speaker selector?

Most speaker selectors have spring-loaded push buttons or screws to connect speaker wiring. You can’t use banana or spades. It’s best to use bare speaker cable. When you buy your speaker wire, pay careful attention to the gauge or thickness of the wire.

What is the formula for series speaker wiring?

However, increasing the resistance to more than 4 ohms of speaker resistance by adding Speakers in Series, will split the amplified audio output from the Amplifier across all the Speakers in the circuit. The formular for Series Wiring is: Znet=Z1+Z2+Z3….
