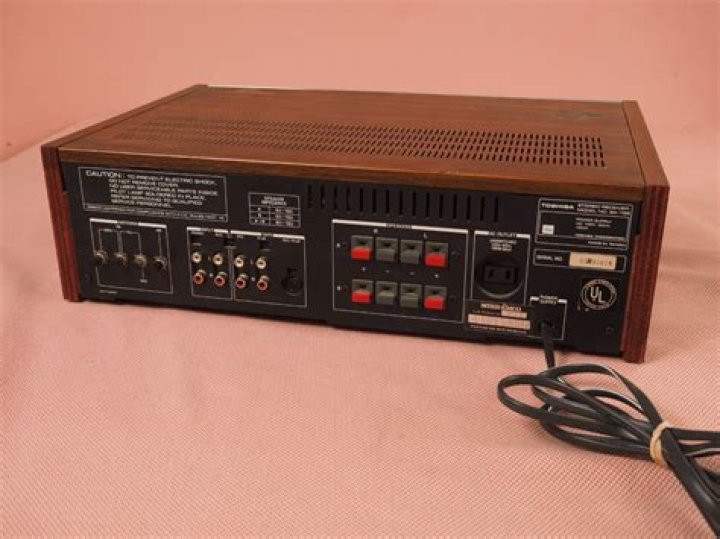

How do you ground a stereo amplifier?

How to Ground a Stereo Receiver

Choose an adequate ground. The household metal that attaches directly into the ground is typically a cold water pipe.
Cut ground wire to adequate length.
Strip both ends of the wire.
Attach wire to receiver.
Attach wire to best grounding source.
Test the system.

Do I need to ground my amplifier?

The audio circuits of the amplifier should be grounded to a zero-potential signal ground to further reduce noise in the signal. This is especially important in amplifiers since they are designed to amplify the signal and any noise within the signal.

How do you ground a radio?

A good ground connection is every bit as important as a good antenna in do-it-yourself radio electronics. The best way to create a good ground connection is to use a metal cold water pipe. Assuming you placed your antenna outdoors, you may be lucky enough to find an outdoor water faucet near the end of the antenna.

What happens if you don’t ground a amp?

a bad ground (or no ground) would prevent an amplifier from turning on. not connecting a 12v+ remote turn on wire, would too, prevent an amplifier from turning on. a blown fuse from a spark will prevent an amplifier from turning on. just a personal note: take off the ground (from the battery) first before installation.

Will an amp power without ground?

Without a ground the unit shouldn’t even power on, as the current has to make a loop from the positive terminal to the sub then back through the ground cable and back to the battery via the car chassis. Ground is just a trick to avoid running unnecessary cables and will not damage anything if its not connected.

Where is a good ground for an amp?

So, where exactly should you ground your amplifier? The ground for the amplifier should be directed to a bare metal area of the car body, within eighteen inches of the amp’s location. Your objective is to try to ground to the main chassis or the sub frame.

Where should I ground the amp in my trunk?

If you’re mounting your amplifier in the trunk, the most common ground would be the strut tower. You have to be sure to sand down any paint or rust until you see the shiny metal underneath for the best connection.

How does grounding work in the PS Audio room?

In the PS Audio Music Room we have multiple grounded AC receptacles on dedicated lines. That means that each AC receptacle has its own wires running back to the central breaker box where the main ground is also located. If each piece of gear is plugged into its own dedicated outlet, then you’ve formed a star ground.

How are power amps connected to earth ground?

Connect the 12-AWG twisted pair to the appropriate amp and loudspeakers terminals. The drain wire should be connected to earth ground at one point only. I have it easy here in my listening room because my power amp chassis is connected to earth ground.

How to connect a Belden amp to earth ground?

Belden #8718 is a 12-AWG twisted pair with a foil shield and drain wire for an easy connection to earth ground. Connect the 12-AWG twisted pair to the appropriate amp and loudspeakers terminals. The drain wire should be connected to earth ground at one point only.

When does a ground loop occur in a home theater?

First it helps to define exactly what a ground loop is and how it may affect our home theater system. When two or more devices are connected to a common ground through different paths, ground path noise, or a ground loop can occur.

Are there ground loops in an audio amplifier?

No hum, no ground loops no noise. Dead silent. Of course a proper power supply routing on the main PCB is critical. If done properly some very very high performance could be achieved. The schematic was proposed by D. Self in his book “Audio Power Amplifier Design”.

Is there a grounding system in power amplifiers?

Here is a very good schematic showing a tipical power amplifier grounding system. I have tried it ina many of my projects and it works every time. No hum, no ground loops no noise. Dead silent. Of course a proper power supply routing on the main PCB is critical. If done properly some very very high performance could be achieved.

What kind of AMP do I need to play in my apartment?

Here are five crucial tips to make playing in your apartment possible without calls from the manager’s office or your neighbor pounding on your wall. Straight to the truth: anything louder than a TV is unacceptable. Traditional tube amps are out. Even a one-watt tube amp like the Blackstar HT-1 is just too loud to properly use in your apartment.
