How do you hook up a stereo graphic equalizer?

How do you hook up a stereo graphic equalizer?

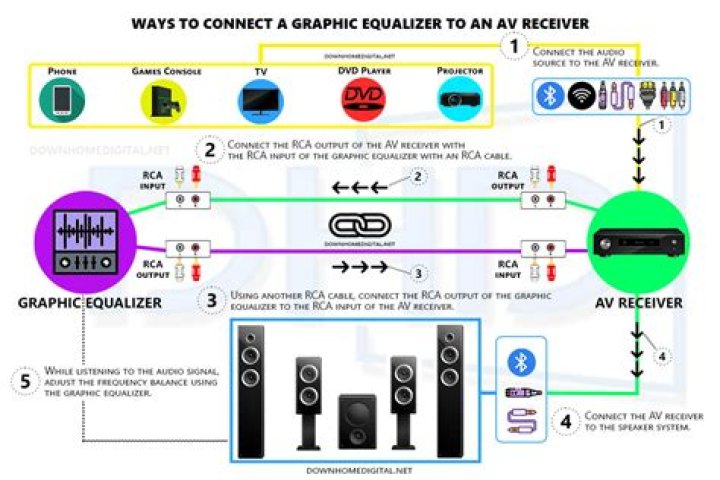

Plug a pair of RCA audio cables into the input sockets on the rear of the graphic equalizer. Connect the other end to the “Tape Monitor” outputs on the rear of the receiver. Connect a second pair of audio cables to the “Tape Monitor” inputs on the rear panel of the receiver.

How do you use a graphic equalizer?

With a digital EQ, you typically click on a control point and drag up to boost or down to cut. For example, if you wanted to boost audio in the 100 Hz frequency range, you’d either push the 100 Hz slider upward (analog) or click and drag it upward (digital).

Can you connect an equalizer to an amp?

Connecting an Equalizer Directly to an Amplifier. Connect the equalizer directly to your amplifier if your receiver does not have preamp-output channels or tape monitor channels but your amplifier has preamp-in and out channels. Most receivers have either preamp-in and preamp-out connections or tape monitor connections …

Which equalizer setting is best for bass?

Here are the best equalizer settings for bass android: Take 4kHz frequency to 2db and 16kHz to 4db. Do not touch or play with mid-range frequency. You should lower the 230Hz frequency to -4db. Now you’ll have to adjust the 60Hz frequency which is bass.

How to connect graphic equalizer to integrated amplifier?

For the signal to flow from a stereo receiver through the graphic equalizer up to the amplifier, you need two sets of RCA cables. These are the same cables required to attach auxiliary components such as CD players, DVD players, and other record players. These cables must be of the same length as the distance between the equalizer and receiver.

How is an equalizer used in a stereo system?

A graphic equalizer is a vital component of a stereo sound system. It is used to regulate the frequencies of audio signals to achieve higher sound quality. To control these sound frequencies, it needs to operate with an amplifier or stereo receiver. Learning how to connect equalizer to integrated amplifier is relatively simple.

Can a preamp be connected to an equalizer?

Connecting the equalizer to the preamp out or preamp in connections is more advisable than to the tape monitor. The main reason is that the tape monitor does not connect to the amplifier. Use one set of RCA cables to connect the receiver and the equalizer.

Where are the channels on a graphic equalizer?

All these channels are found on the back side of the graphic equalizer. The technique in this step is that the colors correspond to the RCA plugs. For example, the white plug connects to the white jack; the red plug connects to the red jack, and so on.

How do you connect an equalizer to a stereo?

Connect the equalizer directly to your amplifier if your receiver does not have preamp-output channels or tape monitor channels but your amplifier has preamp-in and out channels. Most receivers have either preamp-in and preamp-out connections or tape monitor connections. In most cases, these are the best way to connect an equalizer to your stereo.

For the signal to flow from a stereo receiver through the graphic equalizer up to the amplifier, you need two sets of RCA cables. These are the same cables required to attach auxiliary components such as CD players, DVD players, and other record players. These cables must be of the same length as the distance between the equalizer and receiver.

Connecting the equalizer to the preamp out or preamp in connections is more advisable than to the tape monitor. The main reason is that the tape monitor does not connect to the amplifier. Use one set of RCA cables to connect the receiver and the equalizer.

All these channels are found on the back side of the graphic equalizer. The technique in this step is that the colors correspond to the RCA plugs. For example, the white plug connects to the white jack; the red plug connects to the red jack, and so on.
