How do you reset a Pelco PTZ camera?

Use the following steps to restore a Pelco Analog PTZ to factory defaults:

Access menu of PTZ Camera.
Use the joystick and toggle down the cursor to “Dome Settings”.
Toggle down to “Clear” and press the Open button.
Toggle down to “Restore Factory Defaults” and press the Open button.

How do I reset my Pelco camera?

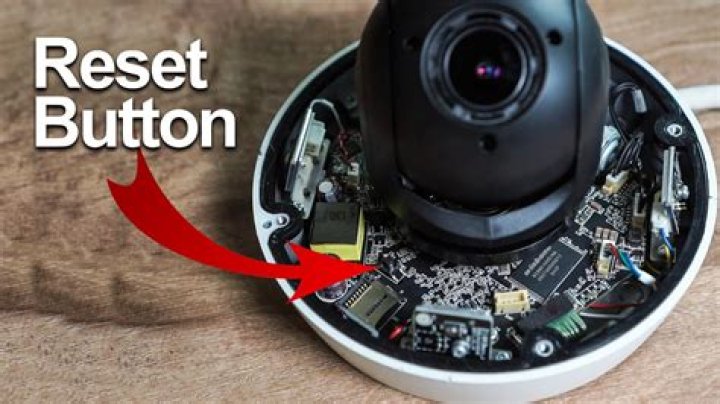

Using a small tool, such as a paper clip, press and release the reset button once to reboot the camera. Press and hold the reset button for 15-20 seconds or until Led turns from green to orange on the front light indicator to restore the camera to the factory default settings.

How do I set my Pelco IP camera to default?

How do I reset a Sarix IP camera to the factory default? The Reset button is recessed. Using a small tool, such as a paper clip, press and hold the reset button for 30 seconds to restore the camera to factory default settings. The web interface also provides the option to RESET the camera defaults.

How do I reset my analog camera?

Hover the cursor over camera configuration and click on OSD in the popup menu. The Camera’s PRESET 95 program menu is displayed. Use the down arrow to the left of the screen to select RESET CAMERA. Enter selection by clicking Iris Open.

What is the default IP for Pelco camera?

192.168.0.20
The default IP address for Pelco IP cameras when a DHCP server is not present is 192.168. 0.20 with a 24-bit subnet mask (255.255. 255.0), which puts the device on the 192.168. 0.0 subnetwork.

What is the manual for Pelco Spectra IV se?

IV SL and Spectra IV SE are Pelco’s premier integrated dome s ystems. These systems feature a high resolution camera/optics package with configurable dome drive software. This manual is designed primarily to be a reference tool for the installation and operation of your system.

Which is the DIP switch on Pelco Spectra?

To compensate for coaxial control systems from other manufacturers, Pelco has provided DIP switch SW2-3. Setting SW2-3 to the O N position may improve dome control with these control systems. If you are using a Pelco Coaxitron controller, leave SW2-3 in the default OFF position.

How do you install a dome drive on a Pelco Spectra?

1. Align the blue and red tabs with the blue and red arrows on the hinged door inside the back box. 2. Push the tabs in. Insert one side and then the other side. Figure 2. Dome Drive Installation 3. Continue pushing on the ends of the tabs until both sides click into place (refer to Figure 2). NOTE:

What is the installation manual for Spectra IV?

This manual contains installation instructions for the Spectra IV dome drive only. For complete installation instructions for a Spectra IV dome system, refer to the installation manual that was shipped with the back box. SWITCH SETTINGS Before installing the dome drive, you must configure the receiver address, termination, and baud setting.
