How long is HDCVI coax cable for a security camera?

How long is HDCVI coax cable for a security camera?

The distance that video cable can be run for HDCVI cameras is the same as AHD cameras. RG-59 coax cable with HDCVI video amplifier: 800 meters / 2600 feet. Multiple amps can be used together to extend over 5000 feet. HD-SDI security cameras are another high definition technology used in video surveillance applications.

Where do you run the cable for a CCTV camera?

Power and video wires run up the wall into the attic to the location where the camera will be located and out a small hole in the soffit were the camera will be mounted. Scenario 2: Another option is to run your cable through an exterior wall and then use conduit on the exterior of your structure to run your cables from one camera to another.

Why does my DVR not take a picture?

Sometimes the camera video flickers, shows a lined screen and monitor, or the DVR gets no picture or signal from the camera. As you can see there are a lot of potential issues that can surface in the operation of your system. Let’s take a look at top offenders. Let’s be clear. This is different than a power outage.

Are there any DVRs that are compatible with more than one camera?

DVRs that are compatible with more than one video surveillance format are known as hybrid DVRs. We also have the Swann camera DVR compatibility guide here in PDF format.

The distance that video cable can be run for HDCVI cameras is the same as AHD cameras. RG-59 coax cable with HDCVI video amplifier: 800 meters / 2600 feet. Multiple amps can be used together to extend over 5000 feet. HD-SDI security cameras are another high definition technology used in video surveillance applications.

How do you connect a DVR to a camera?

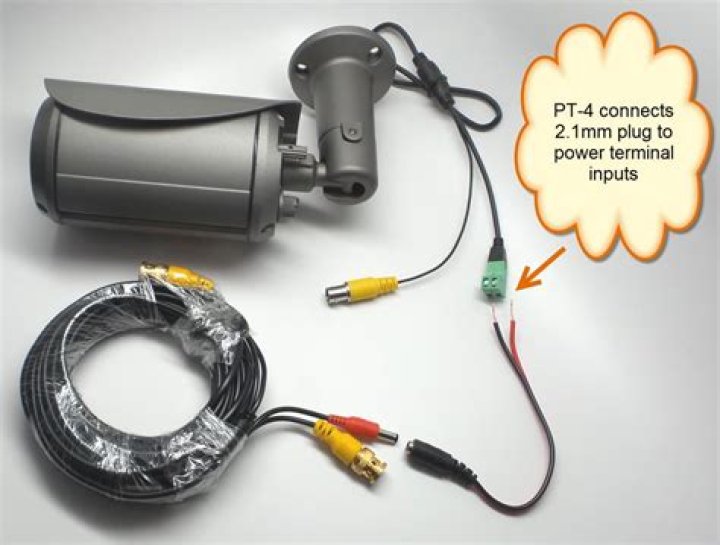

Disconnect only the BNC video cable from your camera and attach the spare cable. Disconnect the other end of the video cable from your DVR or monitor and attach the spare cable. Test to see if there is video. If there is still no video, use the power portion of the spare cable to run the power.

What to do if your CCTV camera is not showing video?

Using a test monitor is one way to do this. A CCTV test monitor is extremely helpful when troubleshooting camera video issues. One of the most common problems when a camera is not displaying video is a bad cable or BNC connection. Using a test monitor, you can temporarily eliminate the power and video cable that your camera is using.

What kind of DVR do I need for a CCTV camera?

If you have an analog 960H DVR, you can only use a CCTV camera that supports analog 960H video. Many of the latest DVRs and cameras are “hybrid” which means they support multiple surveillance video formats.
