How many Watts Does a McIntosh Ma 5100 AMP have?

How many Watts Does a McIntosh Ma 5100 AMP have?

The richness and clarity has to be heard to be believed! The McIntosh MA 5100 amp is “only” rated at 45 Watts RMS per channel, but quite franklly, it beats the snot out of my previous primary vintage Sherwood amp that is rated at 100 watts per channel RMS!

How big is the front panel of the McIntosh ma5100?

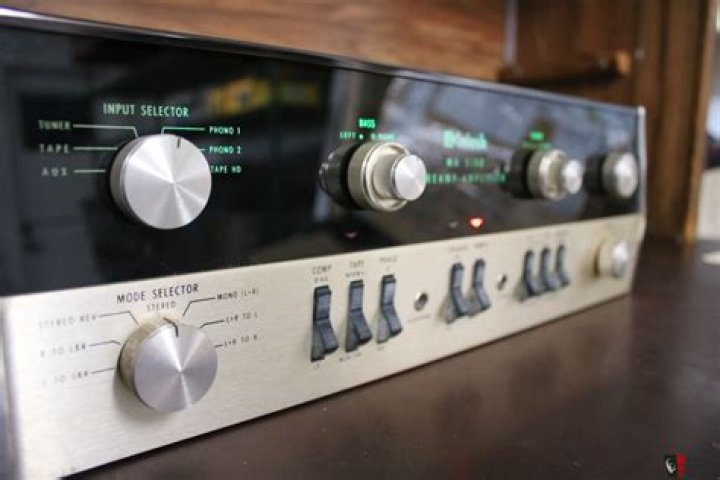

The appearance of the MA5100 is most impressive with a front panel measuring 15 by 4-1/2 inches, finished in black and brushed silver, and the chassis finished in chromium and black.

What kind of sound does a McIntosh AMP make?

McIntosh makes music come alive. The sound produced though this amp was nothing short of amazing and this is 1966 technology. As other post can attest I heard things I never heard before and that was with just a CD. I can’t wait to hook one of my Turntables tonight and hit this thing with some vinyl.

What is the attenuation rate of a McIntosh amplifier?

The specification suggests that there is a rate of 12 dB/octave. In practice, as the B & K filter curve shows, attenuation starts gently at 100 Hz: at 50 Hz the attenuation is only 4 dB and at 25 Hz (octave steps) a further 5 dB.

What are the specs of a McIntosh 5100 amplifier?

MA 5100Preamp-Amplifier ELECTRICAL: 45w/ch stereo, 90w mono. Response 20-20kHz (+0.5 -0.5dB). Distortion 0.25%. Noise and hum -75dB high level, -70dB low level re 10mV. Output impedance 4, 8 or 16 ohms. Damping factor 100. Power amp noise -90dB. Input sensitivity and impedance: high level 0.3V at 250k, phono 2.0mV at 47k, tape head 2.0mV at 500k.

What are the inputs and outputs of a McIntosh amplifier?

BACK PANEL: Barrier strips for 4, 8, and 16 ohms, Outputs: Tape and L+R. High level inputs: tape mon, aux, tape and tuner. Low level inputs: ph 1, ph 2 and tape hd. Ground binding post.

The appearance of the MA5100 is most impressive with a front panel measuring 15 by 4-1/2 inches, finished in black and brushed silver, and the chassis finished in chromium and black.

When do McIntosh amps need to be replaced?

The capacitors used in audio equipment will deteriorate over time no matter what and will need to be replaced. Often some of the resistors and sometimes the transistors will need replacing. Mcintosh will service these amps and bring them back up to spec. The difference after a proper service will astound you.
