How to program the Ademco 6160rf keypad?
David Ramirez
Published Feb 24, 2026
How to program the Ademco 6160rf keypad?
PROGRAMMING THE 6160RF Refer to the following procedure to program the 6160RF: STEP DESCRIPTION DISPLAY CHOICES 1. Enter the program mode by pressing the [1] and [3] keys simultaneously for a few seconds within 60 seconds after applying power. 2. (Keypad Address) Enter the two-digit keypad address. Press the [ ] key to continue.
Is it possible to program an Ademco alarm system?
You can program a code on your alarm system. Honeywell Ademco alarm systems are easy to use and are found in homes and businesses worldwide. If you choose, you can program your alarm system yourself.
How do you Exit programming mode on Ademco?
To exit programming mode, press “* 99”. The keypad should return to an idle display, with green “Power” and “Ready” lights. If you ever need to get back into programming mode, enter the (installer code), 8, 00. To add user codes, first follow the steps in your installation manual to add a master user code.
What do you need to know about Honeywell 6160?
The Honeywell 6160 is an alphanumeric keypad and provides full functionality for programming and controlling a Honeywell Vista series hard-wired security system. The 6160 keypad has a 32 character display screen which features English status messages.
PROGRAMMING THE 6160RF Refer to the following procedure to program the 6160RF: STEP DESCRIPTION DISPLAY CHOICES 1. Enter the program mode by pressing the [1] and [3] keys simultaneously for a few seconds within 60 seconds after applying power. 2. (Keypad Address) Enter the two-digit keypad address. Press the [ ] key to continue.
The Honeywell 6160 is an alphanumeric keypad and provides full functionality for programming and controlling a Honeywell Vista series hard-wired security system. The 6160 keypad has a 32 character display screen which features English status messages.
How do I program a Honeywell 6160 keypad?
How Do I Program A Honeywell 6160 Keypad? Install a Honeywell 6160 keypad to the control panel’s keypad terminals as shown in the installation manual. Once installed, to enable the 6160 keypad, start by setting the address at the keypad. The main keypad address should be addressed to 16.
Can a 6160rf be mounted to a wall?

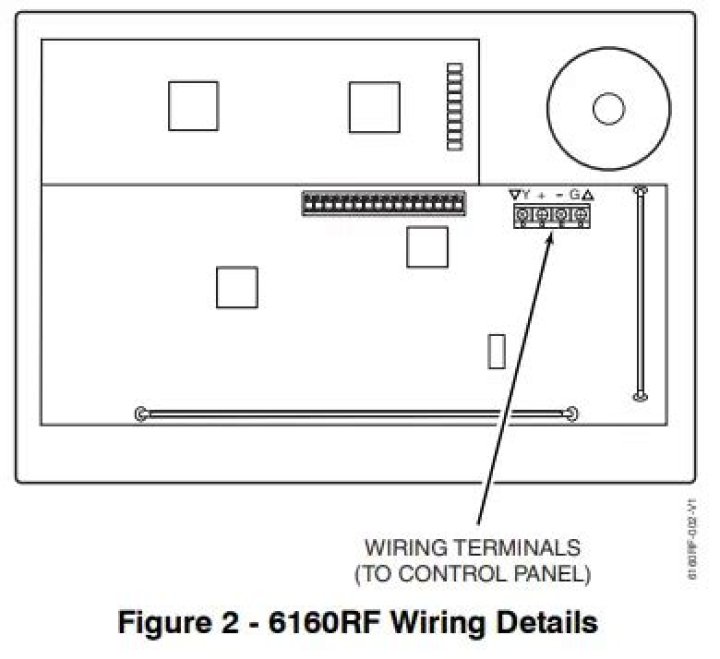

The 6160RF can be surface mounted directly to walls, or to a single- or double-gang electrical box. Follow these steps to mount and wire the keypad: 1. Push the two case release snaps at the bottom of the keypad with the blade of a medium screwdriver (this will push in the release snap), then pull that side of the case back away.
