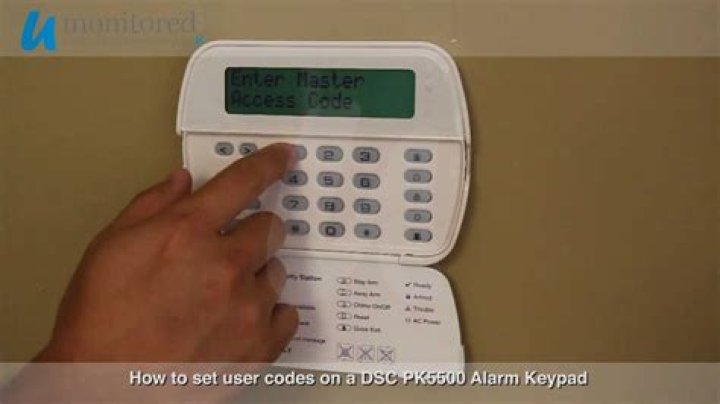

How to program user codes on a DSc pk5500 alarm keypad?

This video will show you how to quickly and easily program user codes on your DSC PK Series Alarm Keypad. Knowledge of your master code is necessary to add/edit user codes on your keypad. Visit to see how easy it could be to monitor your alarm, yourself! Loading…

How many zones does a DSc power 1832 alarm system have?

The DSC Power 1832 alarm system is DSC’s mid level system in their hybrid series. Capable of up to 8 hardwired zones out of the box and expandable up to 32 wired or wireless. The DSC Power 1832 model offers four possible area partitions and can accommodate up to 48 user entry codes.

How much power does a DSc keypad need?

The PC5204 can be used just to provide power for components. The PC1832 panel is limited to a total of 700mA between the Aux+ and keybus terminals which can be quickly eaten up. A PTK5507 touchscreen keypad is a fairly power hungry device that requires up to 300mA of power.

What is the installer code for DSC power?

You will then be asked to enter Installer code .. Enter 5555 The keypad should beep and then ask you for ‘Section’ again .. Enter 999 again NOTE: If using an LED or PK5501 keypad, you will not see a display or any numbers during your programming. You have to listen for the beeps.

How many zones can a pk5500 keypad be used for?

The PK5500 keypad can be used on security systems with up to 64 zones. These keypads are compatible with the latest version of the folllowing DSC security systems: Specifications • Temperature range: -10°C to +55°C (14°F to 131°F) † Humidity (MAX): 93%R.H. † Plastic enclosure protection degree: IP30, IK04 † Voltage rating: 12VDCnominal

How to install a pk5500 v1.1 keypad?

1. Insert a flat head screwdriver into the provided slot (first of two). 2. Move screwdriver toward the back plastic and lift as in the following diagram. This will unhook one side of the front plastic. 3. Repeat step # 1 and 2 on the second provided slot to disconnect the front plastic and allow access for wiring. Mount and Wire Keypad 1.

How does the powerseries 64 zone LCD keypad work?

Input/Output terminal can be programmed to operate as a zone input, programmable output or as a low temperature sensor v1.3 includes easy wireless device enrollment process with v4.6 panel and pre-programmed label libraries (English, French and Spanish)

What should I know about my DSC security system?

About Your Security System Your DSC Security System has been designed to provide you with the greatest possible flexibility and convenience. Read this manual carefully and have your installer instruct you on your system’s opera- tion and on which features have been implemented in your system.

What is the installer code in DSC programming?

The installer code is the code that is used to get into the DSC programming mode so you can set the system up and make changes to panel programming. Having the installer code is the most important part of setting up the system.

How to install the pk5500 v1.1 control panel?

PK5500 v1.1 Installation Instructions WARNING: Please refer to the System Installation Manual for information on limitations regarding product use and function and information on the limitations as to liability of the manufacturer. NOTE: These instructions shall be used in conjunction with the system Installation Manual of the Control Panel

How to find the installer code for DSC security system?

After I enter the *8 [installer code], the word “program” flashes on the screen and the armed light is lit. It then seems to want 3 digits but no matter what 3 numbers I press next, nothing happens except the long “bad code” beep. I have read thru pages 8-11 but they don’t seem to be a help.
