These alarms sound simultaneously, on all levels of your home, when a single unit detects smoke or gas. All the units are wired to a 120-volt household electrical circuit and each have a battery backup.

Are fire alarms connected to the circuit breaker?

You can turn off the circuit breaker for your smoke alarm. The real power comes from the electric circuit to which the smoke detector is connected, and if you want the device to stop making noise, you have to disconnect it from the circuit.

How does fire alarm circuit work?

Fire Alarm Circuit is a simple circuit that detects the fire and activates the Siren Sound or Buzzer. Fire Alarm Circuits are very important devices to detect fire in the right time and prevent any damage to people or property.

Which sensor is used in fire alarm?

Photoelectric sensors are the least costly and are employed widely in residential and other fire alarms. They comprise a light source, typically an IR LED and a photodetector, usually a photodiode, together with simple signal processing electronics (Figure 1), housed in a plastic enclosure.

How does a simple LDR fire alarm circuit work?

Here is a simple fire alarm circuit based on a Light Dependent Resistor (LDR) and lamp pair for sensing the fire. The alarm works by sensing the smoke produced during fire. The circuit produces an audible alarm when the fire breaks out with smoke. When there is no smoke the light from the bulb will be directly falling on the LDR.

What are the applications of fire alarm circuit?

Applications 1 Fire Alarm Circuits are very useful in homes, offices, schools, labs, etc. to detect and prevent any disasters due to… 2 Fire Alarm Systems can work as a stand – alone devices or be a part of a complex home security system with other… More …

How is a conventional fire alarm system connected?

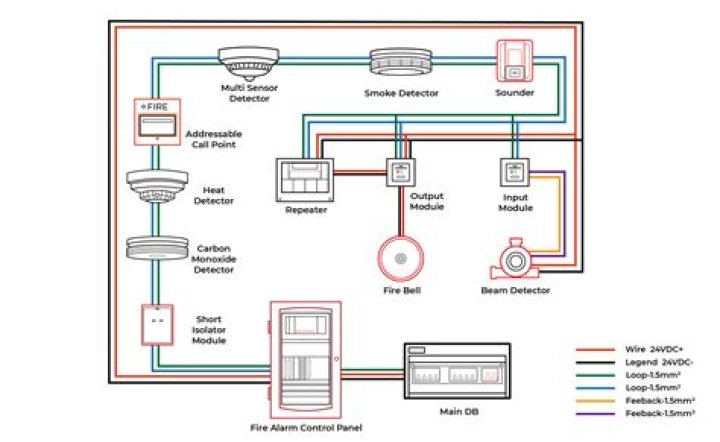

Conventional Fire Alarm System In a conventional fire alarm system, all devices such as detectors, sounders and call points are connected to the control panel through separate wire or cable instead of shared one. In other words, the first end of the wire is connected to the detectors and second one to the control panel.

How are different types of fire detectors used?

Different combination of fire detectors are used at different place; based upon their individual advantage and disadvantages. In such a device both smoke and heat detector detects the fire individually. Once detected they give signal to the control circuit; which then match it with preset value to raise the alarm.

Here is a simple fire alarm circuit based on a Light Dependent Resistor (LDR) and lamp pair for sensing the fire. The alarm works by sensing the smoke produced during fire. The circuit produces an audible alarm when the fire breaks out with smoke. When there is no smoke the light from the bulb will be directly falling on the LDR.

What kind of wiring is needed for a fire alarm?

This is the basic fire alarm system used in household wiring. A smoke or heat detector can be installed to the existing or new home wiring. in our basic wiring diagram, a single or multiple heat and smoke detectors are installed in the home by connecting the live (line or hot), neutral, ground and an interconnected wire to the alarm.

How are smoke detectors connected during a fire?

These detectors are connected to a power source all the time to ensure maximum protection. If the power is off during a fire emergency, the detectors will still run on backup battery power. Know the basics of smoke detector wiring, and learn how these detectors are connected together in a series.

How is the distance of a fire alarm wire determined?

A:The distance you can run the wire on an addressable loop is determined by the size and type of wire used and the number of devices. You should refer to the fire alarm panel’s manual for this information. Q:How loud do my signals need to be? A:NFPA 72 National Fire Alarm Code sets the standards for what’s required.
