What does no LNB voltage mean?

What does no LNB voltage mean?

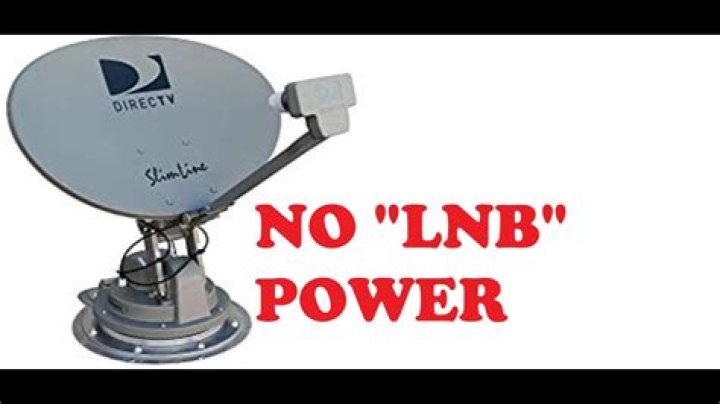

If your controller display is showing No LNB Voltage then it’s not a problem with thecontroller or the data connection to the dish. It’s just that the LNB (the actual antenna on the arm on the dish) isn’t getting any voltage to power it up. Without voltage it won’t pick up any signals.

What voltage does an LNB need?

C-band LNB

How do you test a satellite LNB with a multimeter?

The LNB can be tested using the multimeter. U can remove the LNB and keep the negative probe in the centre and the positive probe of the multi meter on the outer dia of the connector of the LNB . Keep the multi meter in the buzzer range and now u can seen some impedence i.e the resistance of about 500-550 ohms.

How do I set LNB frequency?

If you have Free to Air (FTA) Set Top Box and want to configure, then here we will let you know LNB frequency. You must have this setting in Antenna setting. Satellite name – GSAT 93.5 LNB Type – Universal – Ku Band. LNB Frequency – 09750- 10600.

How long does an LNB last?

Water ingress and excess heat shorten life drastically but around 4 to 5 years should be about average depending on quality of construction.

Can an LNB fail?

LNBs can degrade over time, particularly in locations exposed to extreme weather conditions; signs of a faulty LNB include missing channels, video pixilation, signal drop-out during heavy rain or a complete loss of signal.

What is the free dish LNB frequency?

DD Free Dish

What should the voltage be on a LNB meter?

With vertical polarisation selected you the meter should indicate from 13 to 14 volts. With horizontal selected, the meter should indicate 17 to 18 volts. However, this measurement is not necessarily correct because the LNB is not connected!

How can I check the strength of the LNB signal?

To check the signal strength you can use a meter at the dish and a spectrum analyser will show you what’s on, but if you want to know if the LNB is receiving power, what voltage is supplied for polarity selection, or whether the 22kHz tone is on or off, many instruments – particularly older ones – won’t help.

Do you need a SFM meter to replace a LNB?

The SFM meter is ideal for verifying that all is well when replacing an LNB. Also it’s an excellent tool for checking that your hard-to-program digital receiver or your motley collection of switches and tone inserters are behaving as expected. The Little Gizmo is very simple and relatively cheap too.

When does the Green led come on on a LNB cable?

The yellow LED shows the polarity – on for horizontal and off for vertical. The green LED comes on when a 22kHz tone is present on the cable. The SFM meter is ideal for verifying that all is well when replacing an LNB.

With vertical polarisation selected you the meter should indicate from 13 to 14 volts. With horizontal selected, the meter should indicate 17 to 18 volts. However, this measurement is not necessarily correct because the LNB is not connected!

To check the signal strength you can use a meter at the dish and a spectrum analyser will show you what’s on, but if you want to know if the LNB is receiving power, what voltage is supplied for polarity selection, or whether the 22kHz tone is on or off, many instruments – particularly older ones – won’t help.

How do you test a LNB with a RG cable?

Had a rg cable running from a good lnb into a receiver, the good lnb on a dish aimed at a strong TP. The rg cable has its outer conductor cut. the center conductor exposed. The test lnb is placed over the rg cable. The rg cable’s magnetic field transmits the signal from the good lnb into the probe of the test lnb.

Why does my multimeter not read my voltage regulator?

This voltage reading should typically be around 1-2 volts higher than what the regulator is designed to output. If your multimeter doesn’t read anything, it means that your regulator isn’t properly receiving current from your power supply or that the meter is not connected to the correct pins on the regulator.
