What is the sensitivity of a quad 44 preamplifier?

What is the sensitivity of a quad 44 preamplifier?

The Quad 44 preamplifier matches the later Quad range, including the 405/405-2 power amplifier, Quad 34 preamp, and Quad FM4 tuner. As always from the Hi-Fi Engine: Frequency response: 30Hz to 20kHz Total harmonic distortion: 0.05% Input sensitivity: 3mV (MM), 100mV (line)

How to repair TAC integrated stereo power amplifier no sound?

A customer of mine brought to me the TAC Integrated Stereo Power Amplifier With the Model of AV-355 for repair. The complaint was no sound but have power. Usually the first thing I do was to connect a speaker at the output jack to see if the sound really not present. Another test is to check the output DC voltage at the speaker output jack.

How can I tell if my amplifier has shorted?

Another test is to check the output DC voltage at the speaker output jack. It should not have DC voltage and from the test I got 35.6 DC volt which mean the internal power transistor had already shorted. Alright, once the casing was removed I could see two circuit boards (main and pre amp) and a big toroidal transformer-see the photo below:

What kind of preamplifier does Liquid Audio use?

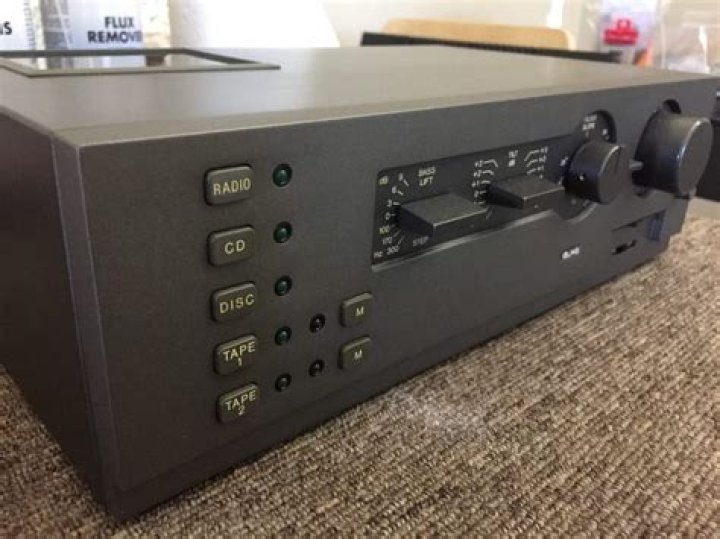

I’m told he purchased them after a chat we had about resurrecting his KEF speakers, and purchasing some Quad gear to power them! The Quad 44 is a compact, CMOS switched preamplifier, with minimal wiring, and high-quality parts. It has a few too many controls for my liking, though there are some useful tone controls and filters.

What does a reciever do as a pre-amp?

This takes the load off the receiver to drive the speakers as the amp is now doing it. The reciever is now acting as a pre-amp and provides all the audio processing, volume control, etc while the amp provides the power.

What are the pre-outs and pre-ins in a receiver?

But since the receiver contains both the pre-amp and power-amp built together in one box, most receivers nowadays just have an internal connection between the internal pre-amp and the internal power amp. Upper level receivers have separate pre-outs so you can bypass the internal power amps.

Can a preamp be connected to an AV receiver?

Previously, we looked at how to connect a preamp to an AV receiver. Using the pre-outs on your receiver is a similarly simple process. First, identify if your speakers will be using the receiver’s amp or an external amp. For the speakers with an external amplifier, locate the corresponding pre-out connection on the receiver.

What’s the difference between a pre-out and an amplifier?

A pre-out is a volume controlled source selected analogue audio output. You’d connect it to the pre-ins of an external power amplifier to use instead of the power amplifiers built into the receiver. Functions like source selection, volume control, DSP and other effects are controlled by the receiver, the power amplifer just drives the speakers.
