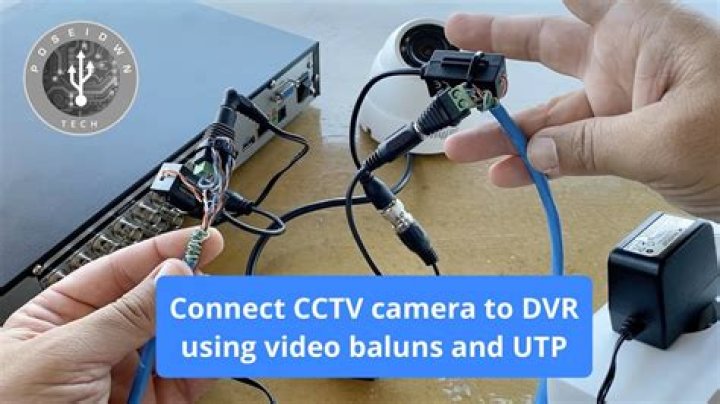

What is UTP video balun?

What is a balun? A video balun is a wire connector device that allows UTP cable (such as CAT5) to transmit the video signal from CCTV cameras instead of using coaxial cable such as RG59.

What is BNC balun?

As low as $1/month with. A traditional analog or HD cameras can be powered by using a balun. Baluns are used to transmit analog video, which is normally transmitted on coaxial cable, on ethernet cable. Our baluns even have a connector that allows electricity from the wires to power the security camera.

What is a passive balun?

The passive balun is non-powered and just converts the unbalanced to balanced signals so it’s possible to transmit the camera analog signals over the Cat5e cable. An active balun is powered and can convert and boost the unbalanced signal to balanced signals and transmit it to long distances over the Cat5e cable.

Can BNC convert to ethernet?

You can use this adapter to convert the BNC security camera to the ethernet. Then, the ethernet will go to whatever device the cable is connected to. Adapters work in pairs, and most come in packages. After connecting the BNC camera, the other end will most likely end in your router which is where your video will land.

Can we use CAT6 cable for analog CCTV?

Never use a CAT 6 cable for analog or HD cctv cameras. Use CAT6 only for IP cameras. The reason is very simple. Analog cameras transmit analog signals which are best transmitted over a coaxial cable.

Can I use analog camera to NVR?

A digital video server converts the analog signal from a CCTV camera to a digital signal that can be sent over computer networks and to an NVR. It’s possible to use one video encoder per camera or use a model with more inputs, so you can convert 4, 8 or even 16 analog cameras to digital.

What is a balun used for?

This transformer is known as a balun, and they are in operation in anything from telephone lines to transmitters. Baluns are used both to sort out the flow of AC signals and make the necessary impedance transformation between coaxial cable, which has a low impedance, and balanced loads, which have higher impedances.

What is a passive video transceiver?

NV-214A-M Video Transceiver is a passive (non-amplified) device that allows the transmission of real-time monochrome or color video over Unshielded Twisted-Pair (UTP) telephone wire. Baseband (composite) signals of any type are supported.

Is PoE better than BNC?

POE CCTV cameras are regarded as a higher-end CCTV camera option and provide several benefits compared to BNC CCTV security cameras. POE cameras offer connection over a network and allow for higher resolution and more customization. Overall POE cameras are a more robust option for your CCTV system.

How long can you run BNC cable?

300ft
BNC cables can be run up to 300ft (91m). We recommend using one solid line from the camera to the DVR to maximize signal strength.

Can a cat5 balun be used with a UTP balun?

The PV5FM is also known as a UTP balun because any UTP / STP cable / wire can be used with it (not necessarily CAT5). This video balun pair that allows a surveillance system installer to run a CCTV video signal up to 1500 feet.

What kind of balun is used for CCTV cameras?

The Balun-PV5FM is a CAT-5 balun used to transmit video and power for CCTV cameras up to 1500 feet. The PV5FM is also known as a UTP balun because any UTP / STP cable / wire can be used with it (not necessarily CAT5).

What kind of cable do you need for a video balun?

By using a video balun it’s possible to replace the traditional coaxial cable such as RG59 or RG11 and use cat5 cables to transmit the video over long distances. The picture shows the types of cables used with a balun for CCTV.

How many cameras can I connect with a UTP CAT 5 cable?

Potentially, you can connect up to four cameras using one UTP CAT 5 cable. It is also suitable for multimedia presentation, video conferencing and remote monitor setups. The balun accepts all composite video signals. Transmission distance is up to 600m for B&W, 400m for colour and up to 1000m with an active receiver or hub.

Can a video balun be used with a Cat5e cable?

It’s possible to send video and power to the camera using the same Cat5e cable by using a video power balun thus reducing the costs of running extra cables. Such type of a balun requires that an RJ-45 connector is crimped to each end of the cat5e cable as shown in the following picture.

Can a video balun be used for CCTV?

You can use a video balun for CCTV to convert from one type of cable to another. This type of device is very common on video surveillance projects that use analog cameras and DVRs (Digital Video Recorders). What is a balun ?

How far can you run a cat5 cable for CCTV?

How far can you run a cat5 cable for CCTV? The average distance is 300 meters when using passive baluns and 1,200 meters when using an active balun but those distances may vary depending on the quality of the cables, local interference, and baluns that are used on the installation. Can more than one BNC balun be used on a single CAT5 cable?

When to use a video power and data balun?

When an analog PTZ (Pan Tilt Zoom) camera is used in the surveillance project, it’s necessary to run video, power and data over cat5e cables and that’s the reason a video power and data balun is helpful.
