Where are the zones on the Ademco Vista 20p?

Where are the zones on the Ademco Vista 20p?

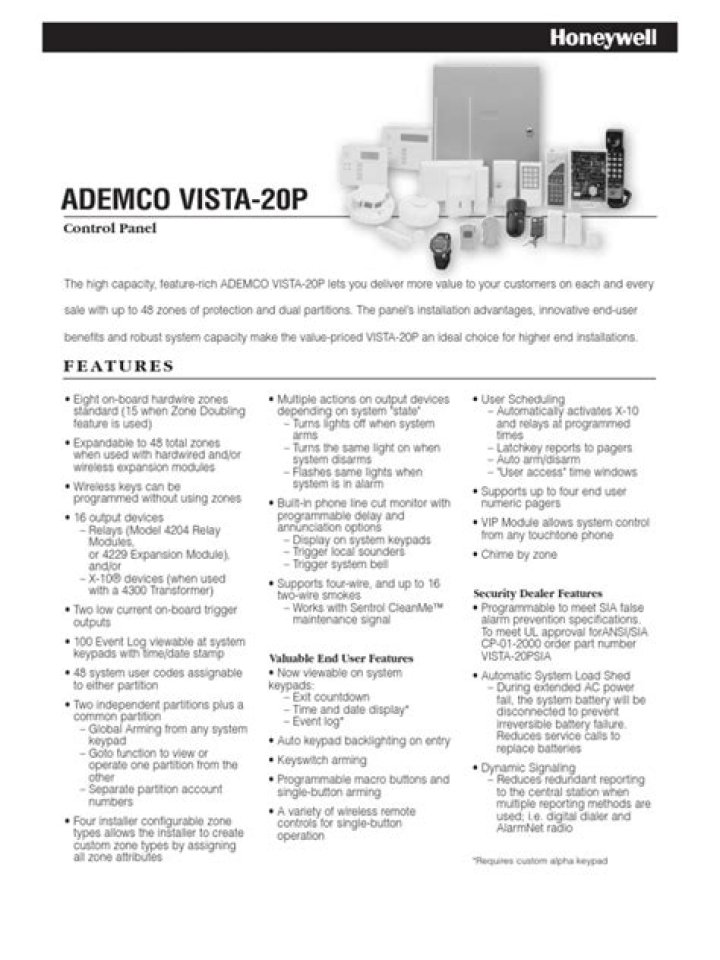

The Ademco Vista 20P has the capacity for 8 on-board zones using basic connections. Each zone uses a 2,000-ohm (2K ohm) end-of-line resistor, which can be located at the alarm contact or inside the panel. Zone doubling is an optional connection scheme that this panel supports; it adds 7 more hardwired zones to panel with no additional hardware.

What kind of resistors does the Ademco Vista 20p use?

Burglary zones use “normally closed” loops, so always connect the EOLR in series with the loop. Note that the Ademco Vista 20P, like many other panels, can be programmed to not use end-of-line resistors on burglary zones. This option simplifies wiring, and cleans up the panel a bit.

What is the wiring diagram for Honeywell Vista 20p?

The image of the Honeywell Vista 20p wiring diagram is small, but you can click to enlarge it. Also, I highly recommend that you download a free copy of the complete Ademco manual, which will include a full-size image of the wiring diagram. It also gives detailed specs and ratings for the system and all its terminals.

Can a smoke alarm be connected to an Ademco Vista 20p?

Fire zones use “normally open” type loops, so the EOLR always goes across the loop. The Ademco Vista 20P also supports 4-wire smoke alarms, but a relay will need to be added. This is to allow the panel to switch off power to the smokes during a “smoke detector reset” command.

The Ademco Vista 20P has the capacity for 8 on-board zones using basic connections. Each zone uses a 2,000-ohm (2K ohm) end-of-line resistor, which can be located at the alarm contact or inside the panel. Zone doubling is an optional connection scheme that this panel supports; it adds 7 more hardwired zones to panel with no additional hardware.

Burglary zones use “normally closed” loops, so always connect the EOLR in series with the loop. Note that the Ademco Vista 20P, like many other panels, can be programmed to not use end-of-line resistors on burglary zones. This option simplifies wiring, and cleans up the panel a bit.

Fire zones use “normally open” type loops, so the EOLR always goes across the loop. The Ademco Vista 20P also supports 4-wire smoke alarms, but a relay will need to be added. This is to allow the panel to switch off power to the smokes during a “smoke detector reset” command.

The image of the Honeywell Vista 20p wiring diagram is small, but you can click to enlarge it. Also, I highly recommend that you download a free copy of the complete Ademco manual, which will include a full-size image of the wiring diagram. It also gives detailed specs and ratings for the system and all its terminals.

What are the unlabeled keypad keys for Ademco Vista?

Unlabeled keypad keys (known as ABCD keys) for special functions Zone Programming (Expert Mode) Press 58. Same options as *56 mode, but with fewer prompts. Intended for those familiar with this type of programming, otherwise *56 mode is recommended. Output Device Mapping Press 79.

Is the Ademco Vista 20p a good alarm system?

The Ademco Vista 20P has very good built-in lightning protection, even without an earth ground connection. See why a Vista 20P Ademco Alarm System is such a good choice for the average-size home. More information on Honeywell Security Systems.

Where is the red jumper on the Ademco Vista 20p?

The Ademco Vista 20P has the ability to supervise the bell connection, so you’ll get a trouble beeping at the keypad if the siren wire is cut. To enable this feature, cut the red jumper on the circuit board; it’s located just above the terminal strip on the left end.

What are the colors of Ademco Security cable?

This cable is usually manufactured with the colors red, black, green, and yellow (or white) for the individual wire insulation. This makes it easy to keep track of the power and data pairs, as well as the polarity of each. Ademco deserves extra credit for designating these terminals by color, rather than by “in” and “out”.
