Why does my smoke detector have 4 wires?

4 Wire Smoke Detectors 2 wires to provide power from the security system auxilliary output connections. They use a second set of 2 wires to connect to a zone input on the security system. 2+2=4 hence the term 4 wire.

What is a 4 wire fire alarm system?

Four-Wire. Four-wire alarm systems use different wires for power and triggering the alarm. Two of the four wires generate the power for the smoke alarm, and other two wires are directly connected to the alarm component. As a result, a 4-wire system can self-activate itself because the alarm wires are separate.

How many wires does a smoke detector need?

If you buy an AC-powered smoke detector today, it will have three wires — black, white and red. Black accepts 120 volts AC, white is neutral, and red is the intercommunication wire.

Are smoke detectors normally open?

Alarm systems are designed to use ‘open loop’ burglary sensors. While they are called ‘open loop’, they are actually ‘normally closed’ when the magnet is near the sensor or in other words the zone is ‘safe. Smoke and water sensors are usually ‘normally open’ and are used with an EOL resistor.

Do Smoke detectors need wired in series?

Smoke detectors need to be wired together to create a complete system. With hard-wired detectors, a single smoke detector going off will set off the others — ensuring that everyone in your home is alerted to hazards. Hard-wired detectors are also able to run off both power and batteries, making them extra secure.

How do you wire 2 wire smoke?

To connect a 2-wire smoke to a security system, connect the positive and negative zone terminals from the alarm system to the positive and negative terminals on the smoke. Most systems require that a resistor be installed at the smoke detector to provide supervision of the zone wiring.

Can a 2 wire alarm panel work with a 4 wire smoke detector?

Not all alarm panels are compatible with smoke detectors, but most newer ones are. Some alarm panels can use only 2-wire smoke detectors, while others can only use the 4-wire type. Still other panels are compatible with both.

What’s the best way to connect a smoke detector?

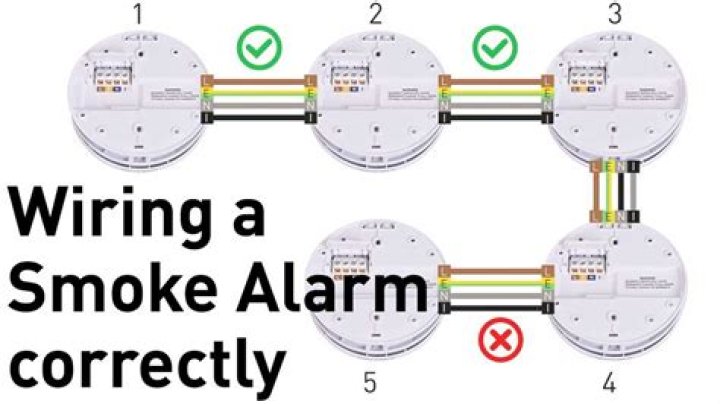

This is usually referred to as a “daisy chain”, and works best for ranch-style homes. Begin pulling from the main alarm panel location, past each smoke detector along the way, until the last smoke is reached. Then back-track, pulling enough slack on the wire to make connections at each wired smoke detector.

What kind of resistor do you need for a 4 wire smoke detector?

The last 4-wire smoke detector on each zone will need a 5.6K ohm resistor wired across the NO and C terminals. The programming for 4-wire smoke detectors is also a little more complicated. You will go into panel programming by entering *8 + 4-digit Installer Code.

What do you need to know about 4 wire smokes?

The subsequent 4-wire smokes will essentially daisy-chain to the previous one. On the final 4-wire smoke, an end of line resistor (EoLR) and a power supervision relay must be wired in. If the panel does not have sufficient power to supply all of the smokes, then an external power supply must be added in as well.

How is a smoke detector connected to another smoke detector?

The Series Connection. To connect more smoke detectors, attach the yellow wire on the smoke detector to the yellow wire on a three-wire cable. Every other smoke detector is connected to the others through the yellow wire. The black and white wires provide the smoke detectors with the power needed to sound an alarm when smoke is detected.

How are black and white smoke alarms connected?

The black and white wires are simply connected to the black and white wires on the service panel. However, it is recommended that houses with at least two levels should have at least one smoke alarm per level installed. This is where the yellow wire comes in. It connects all the different smoke alarms in a home or building.
